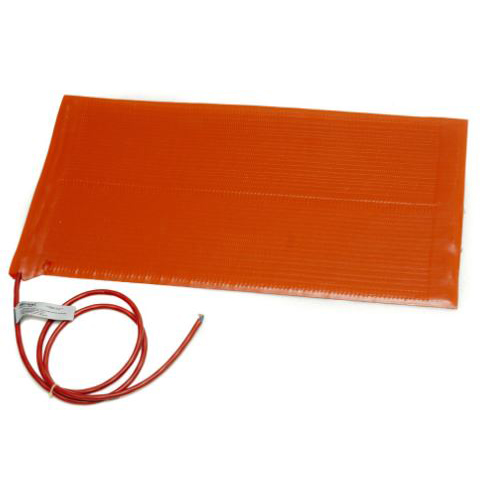

Silicone Rubber Heating Blankets (SRL/SRP)
Product Highlights
- Silicone rubber heating blankets are an extremely versatile and thin electric surface heater with a variety of applications across many industries.
- Low profile heater design is ideal for heating surfaces like tanks, hoppers, conveyors, silos, etc.
- Suitable for a Large Range of Environments
- Moisture and chemical resistant
- Hazardous-area approved model option
- Silicone rubber provides exceptional durability and longevity.
- Moisture, chemical and radiation resistant silicone rubber.
- Available with industrial strength pressure sensitive adhesive backing for easy installation (see ordering options).
- Patented grounded heating element for your safety meets NEC 427.23
- Heating element is laminated between two layers of 20mil fiberglass reinforced silicone rubber.
- Optional high-limit thermostat to protect the heater and the contents being heated.
Specifications:
- Uniform Heat Distribution
- Up to 232°C
- Standard power densities:
- SRL series: 0.004 W/mm²
- SRP series: 0.002 W/mm²
- Minimum exposure temperature: -51°C
- Maximum exposure temperature: 232°C
- Dielectric strength: Over 2000 volts
- Silicone density: 736g/m² per layer
- Electrical power leads: 1219mm standard length with bare wire leads
- Voltage options: single phase 120, 208, 240, 277, 480, or 600VAC
- Bare wire connection (plug not included)
- Temperature controller required
