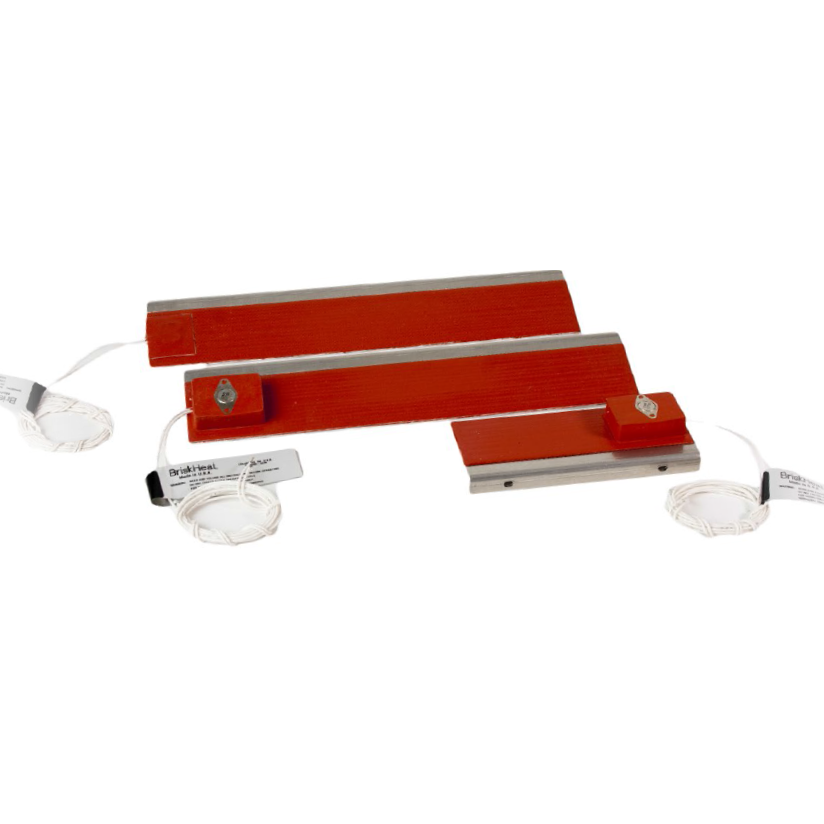

Enclosure Heaters - Silicone Rubber (TSREH)
Product Highlights
- Heater vulcanized to an aluminum plate for easy installation
- Air sensing thermostat for most models.
- Moisture, chemical and radiation resistant.
- Safe to operate, easy installation.
- No exposed electrical connections
Enclosure Heaters ideal for use with:
- Automated teller machines
- Traffic signal control boxes
- Panel Heating
- Control panels
- Switch gears
- Outdoor electrical power enclosures
- And more
Specifications:
- Operating voltage: 120VAC (other voltages available upon request)
- Leads: 1219mm PFA extruded leads
- Aluminum mounting plate has two mounting slots that are 6mm by 4mm centered in a 12mm flange for mounting
- Minimum exposure temperature: -57°
- Maximum exposure temperature: 200°C
- Bracket material: Aluminum
- Bracket thickness: 2.3mm
- Overall thickness (heater and bracket): 3.6mm nominal
- Mounting hole size: 6mm x 4mm
- Mounting hole position on flange:
- 6” Heater: centered on a 12mm flange 4 ” apart
- 12” Heater: centered on a 12mm flange 9” apart
