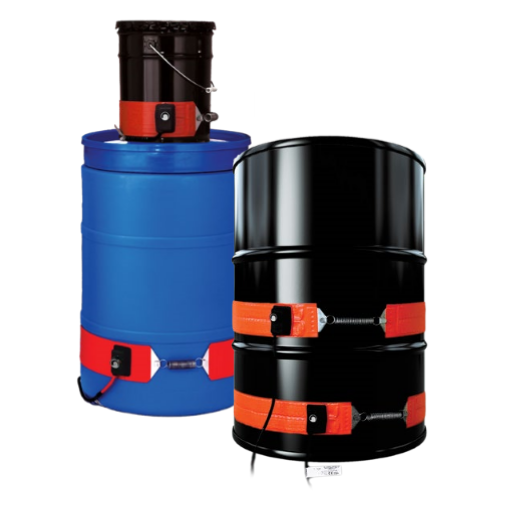

DHCS/DHCH/DPCS/DPCH Heavy Duty Silicone Rubber Drum and Pail Heaters
Product Highlights
- Exceptional durability and flexibility for a wide range of poly and metal drum heating applications
- Easy adjustable thermostat control displays both °F and °C
- 102mm silicone rubber band
- Patented grounded heating element meets NEC 427.23
- Moisture, chemical, and radiation resistant
- Heating element is laminated between multiple layers of fiberglass reinforced silicone rubber
Specifications:
- Power Density:
- DH Series: 0.39W/cm2 for metal surfaces
- DP Series: 0.19 W/cm2 for plastics surfaces
- Adjustable Thermostat Options:
- Up to 218°C for metal †
- Up to 71°C for plastic †
- Voltage Options: 120VAC or 240VAC
- Exposure Temperature: -51°C to 232°C
- Dielectric Strength: Over 2000 volts
- Silicone Rubber Density:
- DHCS/DPCS: 1560 g/m²
- DHCH/DPCH: 2543 g/m²
- Spring closure can be expanded 76mm
- Power cord 1.8m long
- 120V includes standard 3-prong plug (NEMA 5-15)
- 240V has crimped ferrule terminated leads
- Ingress Protection Rating: IP54
